Proxmark 3 Easy

Important: The Proxmark 3 Easy is an obselete device, and the information provided below is for reference only. It has been superceded by the Proxmark 3 RDV 4 and the Proxmark EVO.

Device Background

The Proxmark 3 Easy was designed and produced by Elechouse, the creators of the Proxmark 3 RDV 2. It was designed as a lower-cost version of the Proxmark 3 RDV 2 specifically for domestic sales in China via TaoBao. It was created to be a cheaper, less capable fork of the RDV 2.

Its lower price point came at the cost of performance:

  • Downgraded microcontroller: AT91SAM7S256 (smaller memory 256kb)
  • Removed lithium battery management and socket.
  • Removed Relay
  • Removed Amplifier

These hardware changes resulted in the Proxmark 3 Easy being incapable of performing several of the Proxmark's advanced features, including the Mifare Hard-Nested attacks.

Despite these differences, several Western distibutors sold the Proxmark 3 Easy as a 1:1 alternative to the RDV 2; a source of frustration for the developers and the misled customers.

Technical Specifications

  • CPU AT91SAM7S256
  • Storage 256Kb SPI flash
  • Interface 4x mode LEDs, 1x button.
  • Antennas
    • LF Attached
    • HF Integrated

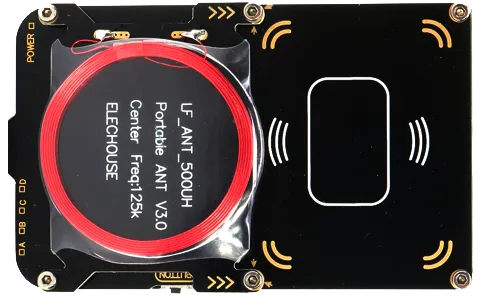

Image Gallery

Buy a Proxmark 3 Easy

The Proxmark 3 Easy is obselete hardware. It has been replaced by the Proxmark 3 EVO and Proxmark 3 RDV 4. Please click here for official distributors.
